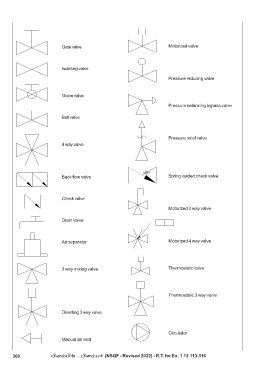

Gate valve                                      Motorized valve




                            Isolating valve

                                                                            Pressure reducing valve



                            Globe valve
                                                                            Pressure balancing bypass valve


                            Ball valve




                                                                            Pressure relief valve
                            4 way valve







                            Back flow valve                                 Spring loaded check valve




                            Check valve

                                                                            Motorized 3 way valve

                            Drain Valve




                            Air separator                                   Motorized 4 way valve






                            3 way mixing valve                              Thermostatic valve





                                                                            Thermostatic 3 way valve



                            Diverting 3 way valve




                                                                            Circulator
                            Manual air vent
